Name: Savantec 6.35-10.31mm High Speed Steel One Pass Deburring Single Edged Deburring Tool For Inner Hole
Brand: Wuxi Hope Technology Co., Ltd.
SKU: Sv-bo
Availability: InStock

Домой > продукты > Интегральные дебюрирующие инструменты >

Savantec 6.35-10.31mm High Speed Steel One Pass Deburring Single Edged Deburring Tool For Inner Hole

Фирменное наименование:

Savantec

Номер модели:

Sv-bo

Свяжитесь с нами

Запросите цитату

Подробная информация о продукции

Название продукта:

Интегральные инструменты выслушивания

Торговая марка:

Savantec

Цвет:

Серебро

Материал:

Высокоскоростная сталь

Метод упаковки:

Пластиковая коробка

Источник:

Китай (материка)

Покрытие:

Нет (можно добавить)

Настраивать:

Да

Порт отправки:

Шанхай

Условия оплаты и доставки

Количество мин заказа

Условия оплаты

T/T.

Родственные продукты

Свяжитесь с нами

Свяжитесь сейчас

Описание продукта

Savantec 6.35-10.31 high-speed steel one pass deburring Single edged deburring tool for inner hole

product description

Deburring holes is usually a costly and time-consuming operation. The back sides of holes are particularly difficult, as they are frequently inaccessible with conventional deburring tools.

BO deburring tools are specialized tools designed to remove burrs from machined parts. Burrs are small, sharp projections that often form on the edges of metal parts during cutting, drilling, or other machining operations. These burrs can be dangerous and must be removed before further handling or use of the part.

BO deburring tools typically feature precision blades or abrasive surfaces that are used to carefully remove burrs from the workpiece. The tools are designed to be used manually or with power tools, depending on the size and complexity of the workpiece.

Efficiency: By using the right tool for the job, operators can quickly and efficiently remove burrs from parts, reducing the overall time and cost of the deburring process.

Savantec deburring Tool Products offers you a better way to get rid of those troublesome burrs. Savantec deburring tools remove burrs on the front, back, or both sides of drilled holes in one pass. . . fast, easy, and economical solutions for your hole-deburring problems!

The burr off tool comes in both inches and metric sizes,ranging from holes as small as 0.8mm to 5.56mm. Savantec Tools have both single and double edges deburring tools, as well as titanium nitride coating and custom measurements as per request. Contact Savantec Tools for competitive pricing. In portable power tools – no need for replicated fixtures, and no special operator skills are required.

product specification

Standard tool								Unit:mm
ORDER CODE	DRILL HOLE	SHANK D	SHAND d	OAL	DIM.A	DIM.B	DIM.D	Recommand REV
SV-BO-0.8	0.8-0.9	3	0.7	45	1	1.5	1.05	1800
SV-BO-0.9	0.9-1.0	3	0.8	45	1	1.5	1.2	1800
SV-BO-1.0	1.0-1.1	3	0.9	45	1	1.5	1.35	1800
SV-BO-1.1	1.1-1.2	3	1	45	1	1.5	1.5	1800
SV-BO-1.2	1.2-1.3	3	1.1	45	1	1.5	1.65	1800
SV-BO-1.3	1.3-1.4	3	1.2	45	1	1.5	1.8	1800
SV-BO-1.4	1.4-1.5	3	1.3	45	1	1.5	1.95	1800
SV-BO-1.5	1.5-1.6	3	1.4	50	2	2.5	2.1	1500
SV-BO-1.6	1.6-1.7	3	1.5	50	2	2.5	2.25	1500
SV-BO-1.7	1.7-1.8	3	1.6	50	2	2.5	2.4	1500
SV-BO-1.8	1.8-1.9	3	1.7	60	2	2.5	2.55	1500
SV-BO-1.9	1.9-2.0	3	1.8	60	2	2.5	2.65	1500
SV-BO-2	2.0-2.2	3	1.9	60	2	2.5	2.8	1500
SV-BO-4	2.2-2.4	3	2	80	2	2.5	3.15	1500
SV-BO-5	2.4-2.6	3	2.1	80	2	2.5	3.45	1500
SV-BO-6	2.6-2.8	3	2.2	80	2	2.5	3.7	1500
SV-BO-7	2.8-3.18	2.75		101.6	3.18	4.45	4.00	1200
SV-BO-8	3.18-3.55	3.15		101.6	3.18	4.45	4.34	1200
SV-BO-9	3.55-3.96	3.58		101.6	3.18	4.45	4.74	1200
SV-BO-10	3.96-4.36	3.9		101.6	3.18	4.45	5.54	1200
SV-BO-11	4.36-4.74	4.34		101.6	3.18	4.45	5.94	1200
SV-BO-12	4.74-5.15	4.72		101.6	3.18	6.22	6.35	1200
SV-BO-13	5.15-5.56	5.13		101.6	3.18	6.22	6.78	1200
SV-BO-14	5.56-5.94	5.54		101.6	6.48	6.22	7.92	800-1000
SV-BO-15	5.94-6.35	5.92		101.6	6.48	6.22	8.33	800-1000
SV-BO-16	6.35-6.75	6.32		101.6	6.48	6.22	8.71	800-1000
SV-BO-17	6.75-7.13	6.73		101.6	6.48	6.22	9.12	800-1000
SV-BO-18	7.13-7.54	7.11		101.6	6.48	6.22	9.53	800-1000
SV-BO-19	7.54-7.95	7.52		101.6	6.48	6.22	9.91	800-1000
SV-BO-20	7.95-8.33	7.92		101.6	7.24	6.48	10.31	800-1000
SV-BO-21	8.33-8.71	8.31		101.6	7.24	6.48	10.72	800-1000
SV-BO-22	8.71-9.11	8.69		101.6	7.24	6.48	11.1	800-1000
SV-BO-23	9.11-9.52	9.09		101.6	7.24	6.48	11.51	800-1000
SV-BO-24	9.52-9.90	9.5		112.7	8	6.48	12.7	800-1000
SV-BO-25	9.90-10.31	9.88		112.7	8	6.48	13.08	600

product image

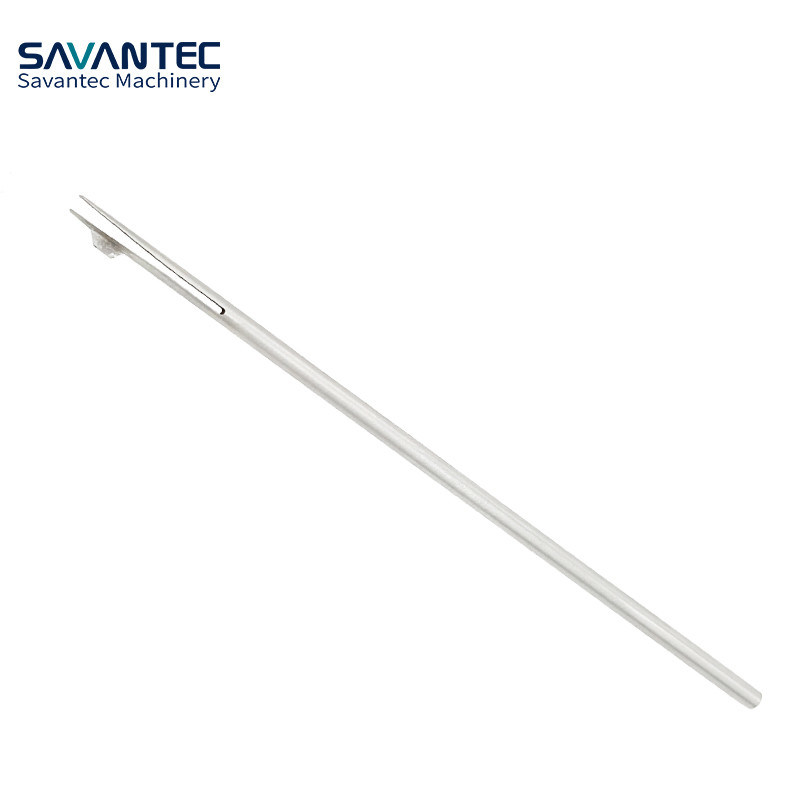

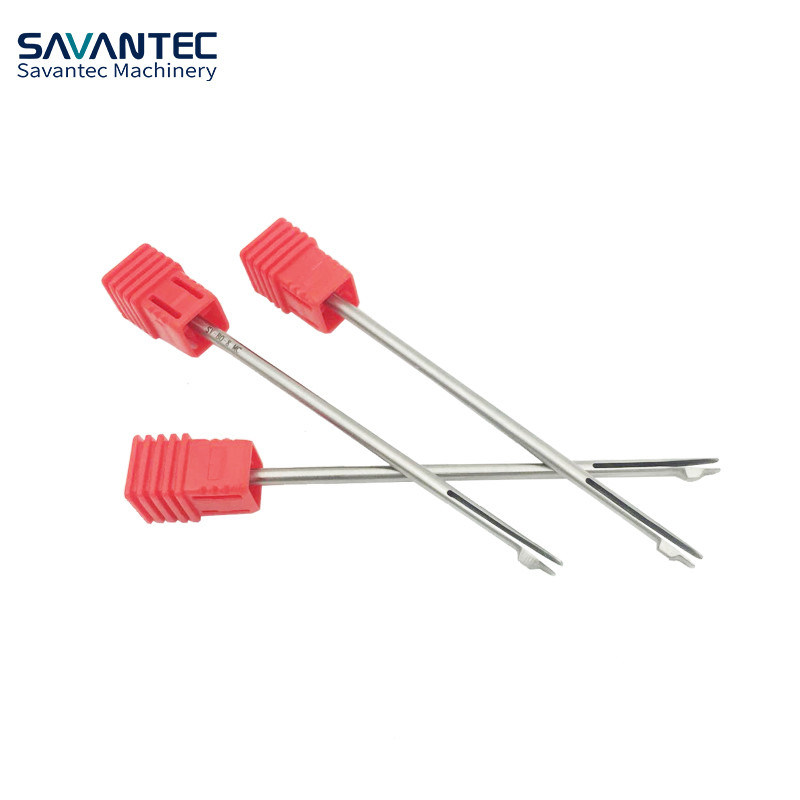

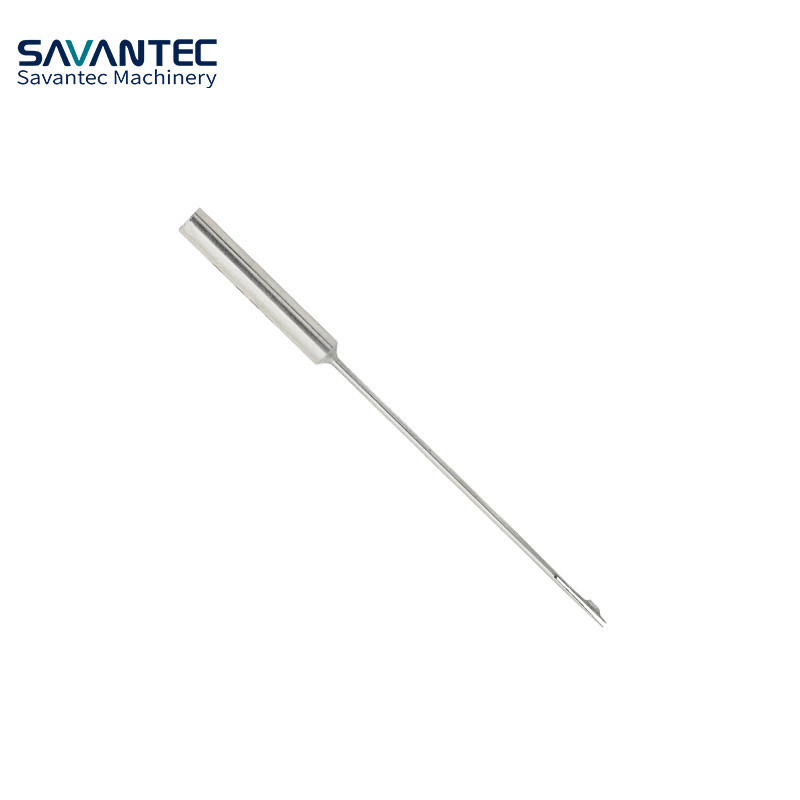

Savantec 6.35-10.31mm High Speed Steel One Pass Deburring Single Edged Deburring Tool For Inner Hole 0
